CNJ Freight House       - demolished now but still standing in the period we are modelling

Clicking on the description of the drawings will download a five page PowerPoint file with HO-scale drawings of all four sides of the building (for printing) and the photographs used as the sources for the drawing.   If you don't have PowerPoint, you can download a PowerPoint viewer here.   The evidence is clear for the S and W sides, but the E and N sides are slightly less clear. The row of high windows is inferred from dark areas on the photos and photo #613!    Also see the photos for the roof detail - it changed through the years.

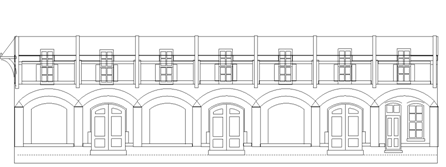

freight s.gif (10551 bytes)        freight w.gif (21181 bytes)

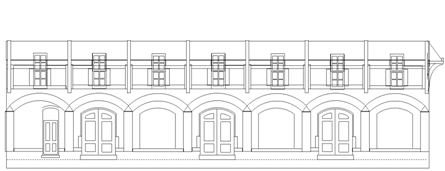

  freight e.gif (20410 bytes)         freight n.gif (7906 bytes)
                                            CNJ Freight House - S, W, E and N sides respectively

See the photos below for more detail:

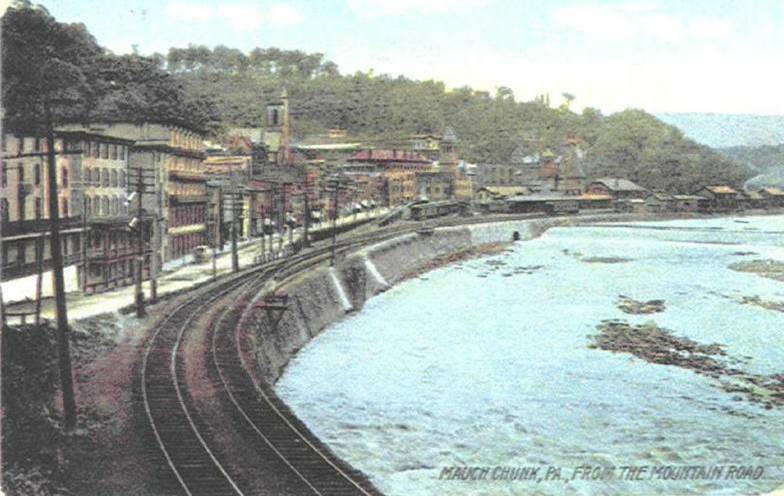

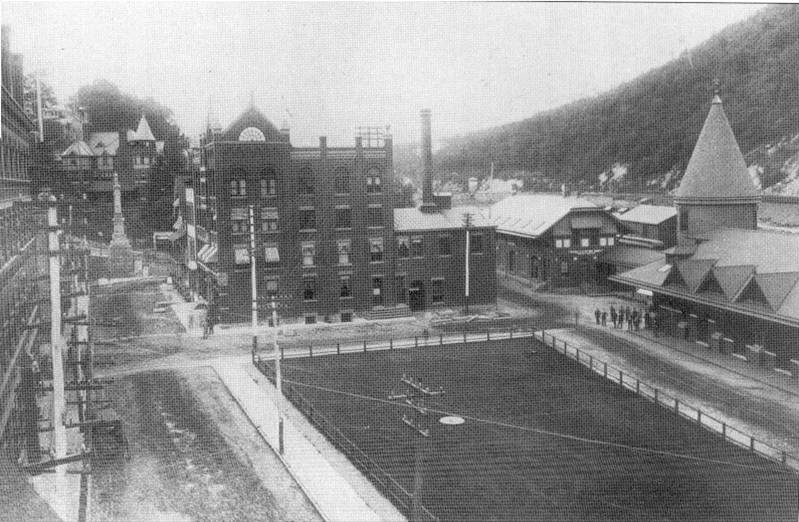

   #110: 19th c.        #112: 19th c.        #116: 19th c.         #333: 19th c.       #342:19
th c.        #407: 1909

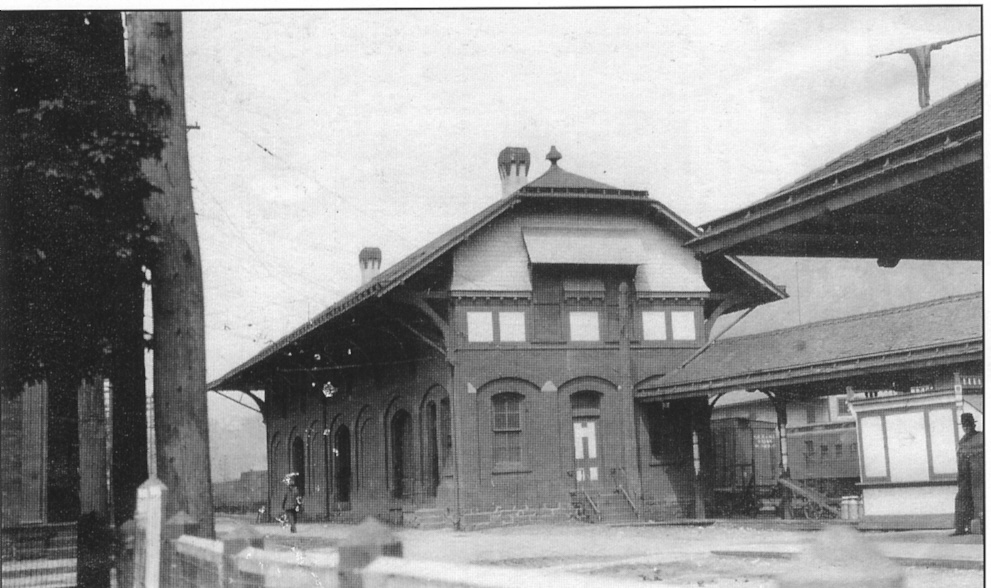

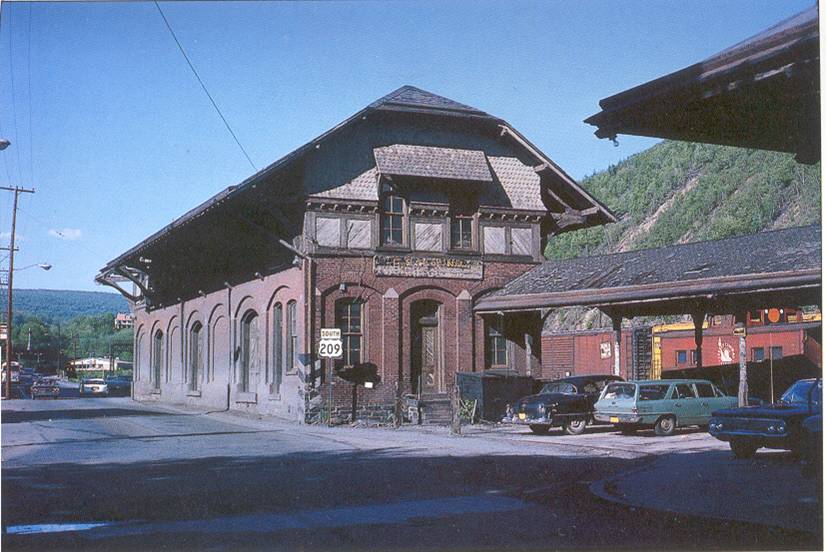

   #439: 19th c.        #603: 1960s          #613: 1950s?        detail of #613      #632: 20th c.

As modelled at end 2008 (incomplete)
